黃金門Goldengate地下成像儀（土耳其）

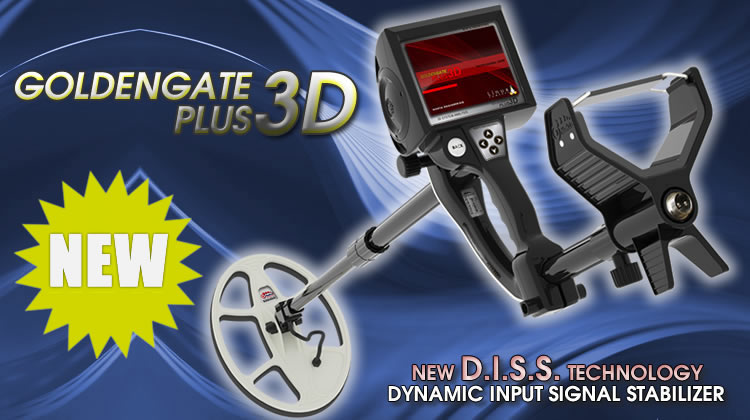

GOLDENGATE PLUS 3D
GOLDENGATE PLUS 3D 具有內置的GPS。另一個特點是伴隨GPS而來的是“跟蹤”功能。另外，公司最近開發的D.I.S.S. 技術用在了GOLDENGATE PLUS 3D 技術探測器中。
GOLDENGATE PLUS 3D 將被探測金屬識別為3組，即金/有色金屬、黑色金屬和鋼/合金，且立即將探測結果提供給用戶。由于有了Nokta Engineering，才使得所有這些技術能首次共同地用于金屬探測器。GOLDENGATE PLUS 3D金屬探測器的特點在于具有10個語言選項、預定義的搜索模式和個性化的主題，這使得其用戶在搜索過程中很舒適。
信號-尺寸關聯 信號-形狀關聯
GOLDENGATE PLUS 3D將從目標上獲得的信號與目標尺寸(寬度-長度)相關聯。GOLDENGATE PLUS 3D根據地下目標的角度，以厘米為單位顯示呈現在3D結果顯示屏上的圖表上的尺寸。用戶可通過查看此數據算出地下目標的尺寸和搜索面積。
GOLDENGATE PLUS 3D可立刻畫出被探測金屬的3D 圖形。GOLDENGATE PLUS 3D用圓形和正方形顯示等邊目標，用橢圓和長方形顯示長的目標。
深度指示器
 GOLDENGATE PLUS 3D在3D結果顯示屏上的深度條形圖上以厘米將被探測目標的深度顯示給用戶。
3D 結果顯示屏滿足金屬探測器用戶在單一顯示屏上的所有期望。像目標的識別、深度、尺寸和圖形等，3D結果顯示屏既精確又詳細地將所有這些用高質量的圖形呈現給用戶。GOLDENGATE PLUS 3D探測的就是差異！
搜索模式
在GOLDENGATEPLUS 3D中有5個自動的、預定義的搜索模式。選擇哪個模式要基于搜索區域的地面構造。設備會自動調節所有必要的設置為搜索做好準備。搜索模式為“通用搜索模式”、“深度搜索模式”、“高礦物模式”、“垃圾金屬模式”和“海灘模式”。此外，每種模式的閾值和Rx增益電平由用戶自定義設置并保存。
地平衡
 |
由于具有快速DSP技術，GOLDENGATEPLUS 3D可以在每種類型的地面上進行更快更精確的地平衡。此技術根據地面的礦物構造更高效地探測差異，使用戶僅在數秒內就能進行地平衡。GOLDENGATEPLUS 3D在搜索期間也連續地檢查地面并通知用戶。由于技術的強大，搜索也變的更加愉快了!
|
靈敏度(閾值和Rx增益)設置
 |
在存在高水平的礦物和磁場強度的地面的搜索區域內很難獲得精確的搜索結果。這些不良條件使所有探測器用戶使用設備更困難。在GOLDENGATEPLUS 3D中, 可以調節靈敏度（閾值和Rx增益）電平。閾值和Rx增益可根據搜索區域的情況而減小或增加。GOLDENGATEPLUS 3D將搜索的靈敏度納入了考慮范圍之中。 |
識別
 |
GOLDENGATE PLUS 3D向用戶即時地提供被探測金屬的識別信息和金屬識別號。在GOLDENGATE PLUS 3D中也含有用戶可以手動更改的識別設置。通過使用此設置，用戶可對GOLDENGATE PLUS 3D將哪些金屬檢測為有色金屬和哪些金屬檢測為黑色金屬進行定義。GOLDENGATE PLUS 3D最重要的特點之一是其快速的“恢復速度”。GOLDENGATE PLUS 3D可探測離的很近的黑色和有色金屬，并且將搜索顯示屏上的每種金屬的識別圖形顯示給用戶。 |
GPS和跟蹤
GOLDENGATE PLUS 3D 用戶可找到正在搜索區域的坐標并將其保存。其也可以查看搜索區域海拔和搜索速度的數據。當將坐標輸入至因特網或個人電腦上的地圖應用程序（如Google Earth®, Yahoo® Maps等），用戶可獲得詳細的搜索區域信息，如地理特征、歷史等。搜索迷途者時無迷路的風險!
跟蹤
GOLDENGATE PLUS 3D模型中的“跟蹤”特征可創建用戶地圖。 可將搜索區域繪制成地圖，并保存信息，如用戶曾經在過的位置、他/她停下并搜索過的位置和他/她走了多遠。此特征為返回被保存區域提供了機會。GOLDENGATEPLUS 3D提醒用戶在哪里和為什么他/她停下過。由于跟蹤特征的存在，搜索變的更容易，搜索區域也不會被忘記。
D.I.S.S. 技術
 |
從地面獲得并經處理的信號的質量優點由其清晰度和穩定性來決定。所有探測器和線圈均受氣候和環境因素的負面影響。D.I.S.S 技術將這種影響過濾掉，并提高了信號的質量。通過不斷檢查地面，它使用戶進行不間斷地搜索。 開發此新技術的Nokta Engineering已將D.I.S.S 用于其所有設備中。 |
DSP (數字信號處理器)
 |
GOLDENGATEPLUS 3D金屬探測器的技術由4個處理器為支撐。以216Mhz的速度工作、并具有32位浮點DSP和16位ADC的輔助處理器，使得GOLDENGATEPLUS 3D可以更快更有效地對信號進行處理。快速地處理數據和將結果傳給用戶, 同時不會減慢系統的運行速度，并且無故障。 |
LINUX 操作系統
GOLDENGATE PLUS 3D使用LINUX 技術。Linux 操作系統可無沖突地用于所有計算機平臺上。Linux 操作系統擁有龐大的硬件支持, 與包括嵌入式系統、筆記本、服務器、工作站、智能電話和臺式機在內的幾乎每個平臺都完全兼容。
5.7' TFT（薄膜晶體管）顯示器
 |
在GOLDENGATEPLUS 3D中使用了TFT技術制造的VGA (640x480)高質量顯示器。此高分辨率的顯示器使OLDENGATEPLUS 3D使用起來更加容易、更加有趣。GOLDENGATEPLUS 3D讓每視覺變的更加清晰。
|
主題
 |
個性化金屬探測器的時代正在開啟! 用戶根據自己的參數選擇可調節GOLDENGATEPLUS 3D的用戶界面、搜索和功能提示音以及檢查搜索過程中線圈與地面的傾斜度的加速計選項。 |
數據記錄
 |
GOLDENGATEPLUS 3D在其內存中保存跟蹤地圖、GPS坐標和3D圖形。這使得GOLDENGATEPLUS 3D金屬探測器進行過的搜索決不會被忘記！ |
太陽模式
 |
當陽光很強烈且顯示屏受影響時使用太陽模式。太陽模式可在GOLDENGATEPLUS 3D的所有菜單界面中使用。使用太陽模式后，可以更容易地在強烈的陽光下閱讀和查看。 |
10種語言支持
 |
用戶將用自己的語言進行操作! The GOLDENGATEPLUS 3D可在10種語言下運行：英語、土耳其語、德語、西班牙語、俄語、保加利亞語、希臘語、阿拉伯語和波斯語。 |
搜索線圈和配件
 |
 |
 |
|
防水表面搜索線圈
19cm x 24cm (9.5')
可選 |
防水通用搜索線圈
24cm x 32cm (12.5') |
防水深度搜索線圈
32 cm x 40cm (15.7')
可選 |
深度圖表
GOLDENGATE PLUS 3D
GOLDENGATE PLUS 3D, which turns the usual metal detector use into a unique experience, is the first metal detector in the world that can make the signal-shape and signal-dimension association with the target in real time. GOLDENGATE PLUS 3D has a built-in GPS. Another feature that comes with the GPS is TRACKING. D.I.S.S. Technology, which we have recently developed, is used in the GOLDENGATE PLUS 3D metal detector.
GOLDENGATE PLUS 3D discriminates the detected metal in 3 different groups as Gold/Non-Ferrous, Ferrous, Steel/Alloy and it provides the results to the user instantly. All these technologies are available in a metal detector collectively for the first time thanks to Nokta Engineering. The GOLDENGATE PLUS 3D metal detector, which features 10 language options, pre-defined search modes and personalizable themes, will enable their users to enjoy pleasant searches.
SIGNAL-DIMENSION ASSOCIATION SIGNAL-SHAPE ASSOCIATION
The GOLDENGATE PLUS 3D associates the signal obtained from the target with its dimensions (width-length). Based on the angle of the target underground, the GOLDENGATE PLUS 3D shows the dimensions in terms of centimeters on the chart that is present on the 3D result screen. The user can figure out the dimensions of the target underground as well as the search area by looking at this data.
The GOLDENGATE PLUS 3D can draw the 3D graph of the detected signal instantly. The GOLDENGATE PLUS 3D shows the equilateral targets by using circle and square-like shapes and the long ones by using ellipse and rectangular-like shapes to its user.
DEPTH INDICATOR
The GOLDENGATE PLUS 3D shows the depth of the detected target in terms of centimeters on the depth bar present on the 3D result screen to the user.
3D result screen satisfies all the expectations of a metal detector user on a single screen. The discrimination, depth, dimensions and the graph of the target... 3D result screen provides them all both accurately and in detail with high quality graphics to its user. Detect the difference with the GOLDENGATE PLUS 3D!
SEARCH MODES
There are 5 automatic, pre-defined search modes in the GOLDENGATE PLUS 3D. The mode is selected based on the ground structure of the search area. The device adjusts all the necessary settings automatically and gets them ready for searching. These modes are General Search Mode, Deep Search Mode, High Mineral, Trash Metal and Beach Mode. In addition, the threshold & RX Gain levels for each mode can be customized and saved by the user.
GROUND BALANCE |
The GOLDENGATE PLUS 3D makes faster and more accurate ground balancing on every type of ground due to its fast DSP technology. This technology detects the differences based on the mineral structures of the ground more efficiently and enables the users to make ground balancing in seconds only. The GOLDENGATE PLUS 3D checks the ground continuously during search, too, and informs the user. Searching becomes more enjoyable with the power of technology! |
SENSITIVITY (THRESHOLD & RX GAIN) SETTING
|
It is hard to get accurate results in areas where the ground has high levels of minerals and magnetic density. These unfavorable conditions make the device usage harder for all detector users. In the GOLDENGATE PLUS 3D, the sensitivity (Threshold & RX Gain) level can be adjusted. Based on the conditions of the search area, the threshold & RX Gain can be decreased or increased. The GOLDENGATE PLUS 3D takes the sensitivity of the search into consideration. |
DISCRIMINATION
|
GOLDENGATE PLUS 3D provides the user with the discrimination information and the metal ID of the detected metal instantly. A discrimination setting that the user can change manually is also available in the GOLDENGATE PLUS 3D. Users, by using this setting, can define which metals the GOLDENGATE PLUS 3D will sense as non-ferrous and which ones as ferrous.One of the most important features of the GOLDENGATE PLUS 3D is its fast RECOVERY SPEED. GOLDENGATE PLUS 3D can detect ferrous and non-ferrous metals located in close proximity and it shows the discrimination graph of each metal right on the search screen to the user. |
GPS and TRACKINGThe GOLDENGATE PLUS 3D users can find out the coordinates of the areas they are searching in and save them. They can also view data about the altitude of the area and the search speed. They can obtain detailed information about the area such as the geographical characteristics, the history etc. when the coordinates are entered into mapping applications (Google Earth®, Yahoo® Maps etc) present on the Internet or on PCs. There is no risk of getting lost while searching for the lost!
TRACKING User maps can be created by the TRACKING feature in the GOLDENGATE PLUS 3D model. Search areas can be mapped and information such as where the user has been, where he/she has stopped and searched, and how far he/she has gone can be saved. This feature provides a chance to go back to the saved areas. The GOLDENGATE PLUS 3D reminds the user where and why he/she has stopped. Searches become easier and the sear, ch areas are never forgotten thanks to the tracking feature.
D.I.S.S. TECHNOLOGY
|
The quality merit of the signal obtained from ground and processed is determined by its clarity and stability. All detectors and coils are affected negatively by climatic and environmental factors. The D.I.S.S technology filters the effect as a result of these factors and increases the quality of the signal. It enables you to search uninterruptedly by checking the ground constantly. Nokta Engineering who has developed this new technology uses D.I.S.S in all its devices.
|
DSP (Digital Signal Processing)
|
The GOLDENGATE PLUS 3D metal detector's technology is powered by 4 processors. The GOLDENGATE PLUS 3D can process the signal much faster and more effectively due to a secondary processor that works at a speed of 216MHz and has a 32-bit Floating Point DSP and a 16 bit ADC. The search data are processed and the results are given to the user fast, without slowing down the system, and trouble-free. |
LINUX OPERATING SYSTEMThe GOLDENGATE PLUS 3D uses LINUX technology. The Linux operating system can be used on all computer platforms without complications. The Linux operating system, which has huge hardware support, works in total harmony on almost every platform including embedded systems, notebooks, servers, work stations, smart phones and desktops.
5.7' TFT DISPLAY
|
In the GOLDENGATE PLUS 3D, a VGA (640x480) high quality display, produced with the TFT technology, is used. This high resolution display makes the GOLDENGATE PLUS 3D's use easier and turns it into fun. Everything seems clearer with the GOLDENGATE PLUS 3D.
|
THEMES
|
The personalizable metal detec, tor age is starting! Users, based on their preferences, can adjust the user interfaces of the GOLDENGATE PLUS 3D, the search & functional warning tones, and the accelerometer option that checks the inclination of the coil with the ground while searching. |
DATA RECORDS
|
GOLDENGATE PLUS 3D saves the tracking maps, the GPS coordinates, and the 3D graphics in its memory. Searches made by the GOLDENGATE PLUS 3D metal detector are never forgotten! |
SUN MODE
|
Sun mode is used when the sunlight is intense and the screen gets affected by it. The sun mode can be used in all the menu interfaces of the GOLDENGATE PLUS 3D. It provides easier reading and viewing under intense sunlight. |
10 LANGUAGE SUPPORT
|
You will manage technology in your own language! The GOLDENGATE PLUS 3D operates in 10 languages: English, Turkish, German, French, Spanish, Russian, Bulgarian, Greek, Arabic and Persian. |
SEARCH COILS AND ACCESSORIES
|
|
|
Waterproof Surface Search Coil
19cm x 24cm (9.5')
Optional |
Waterproof General Purpose Search Coil
24cm x 32cm (12.5') |
Waterproof Deep Search Coil
32 cm x 40cm (15.7')
Optional |
 |
 |
 |
| Battery |
110/220 Volt Charger |
Car Charger |
 |
 |
 |
| Headphones |
Carrying Harness |
Carrying Bag |
DEPTH CHART
|
